H2Gwall

Highway to Green
h2 bubble.png

Introduction

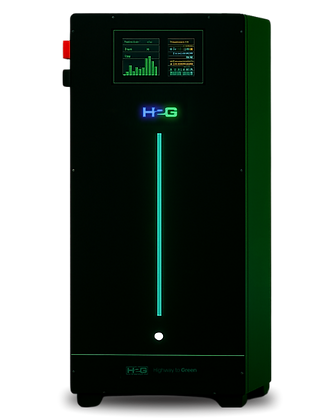

H2Gwal is Enercap’s latest integrated energy storage system, designed for homes and light commercial facilities. It features Enercap’s patented ENCAP and ENSERVER technologies, offering cutting-edge performance and reliability. The H2Gwal system can be charged through the grid, solar panels, wind turbines, or gensets, operating seamlessly in standalone, standalone grid-tied, standalone off-grid, grid-tied hybrid, or off-grid hybrid modes. It automatically switches between modes based on energy availability and demand.

Built on the safest energy storage technology, H2Gwal performs reliably in extreme high or low temperatures without the need for additional heating or cooling. It boasts exceptional AC and DC round trip efficiency. The system allows direct connections to PV, the grid, wind sources, or gensets, and is capable of detecting power outages automatically. It can power your home or electric vehicle and will begin charging as soon as any input source becomes available.

H2Gwal is engineered to store energy over long periods without significant loss due to idle discharge or the risk of thermal runaway, ensuring consistent and dependable performance in all conditions.

H2Gwall

16KWH-48V-10KW Module

DC Energy (kWh)

Technology

ESS Voltage Range (Vdc)

Nominal Cell Voltage

Max. Charging Current (A)

Max. Discharging Current (A)

Charging Curve

Charging Strategy

DC Voltage (Nominal)

Internal Resistance (mΩ)

16

Encapsulated Cell

40–60

6.4~6.6Vdc / Cell (Encapsulated) 1/2 + 0.12V Envelope

216

216

3 Stages / Equalization (CC/CP/VP)

Self-adaption to BMS

48Vdc

< 4
